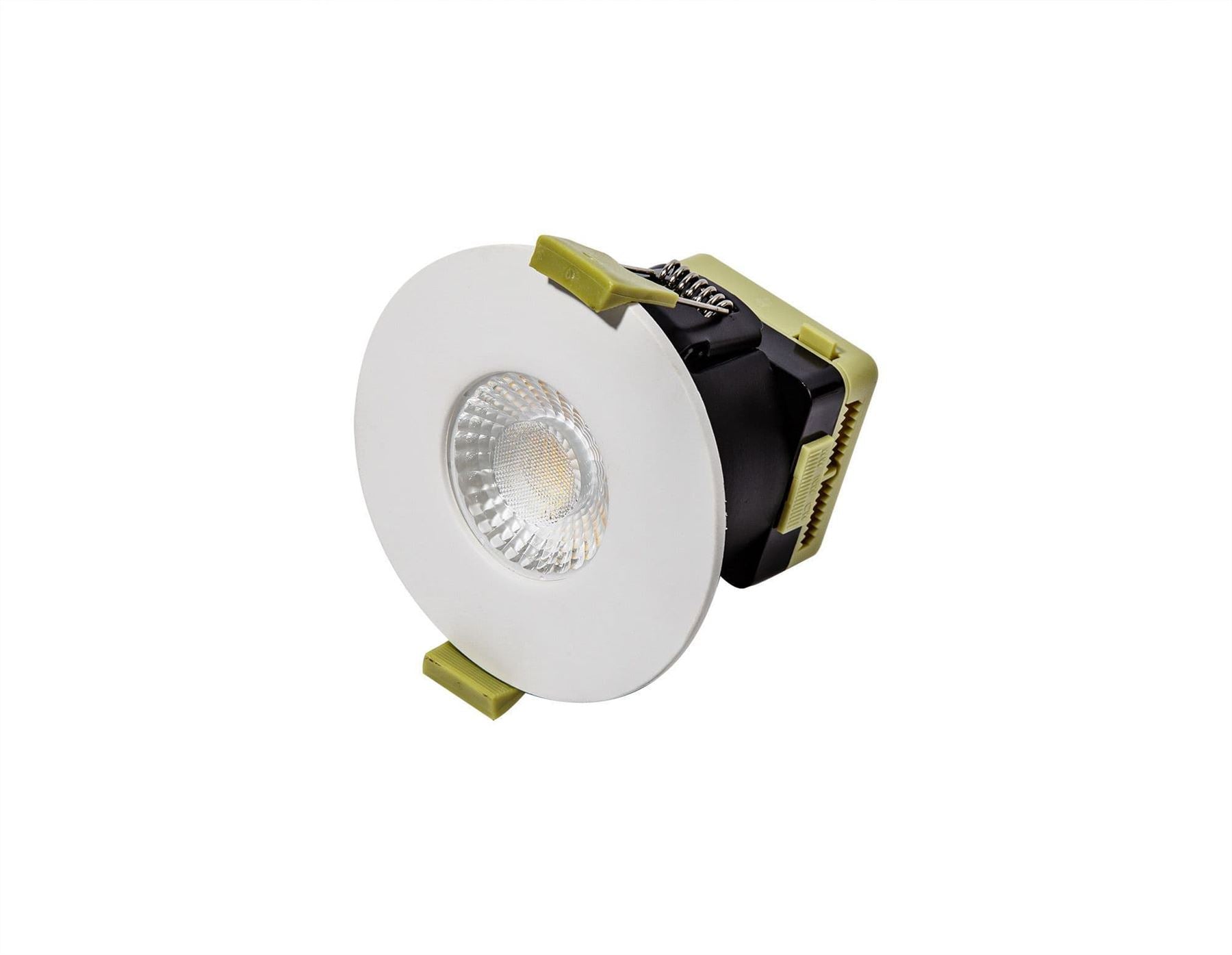

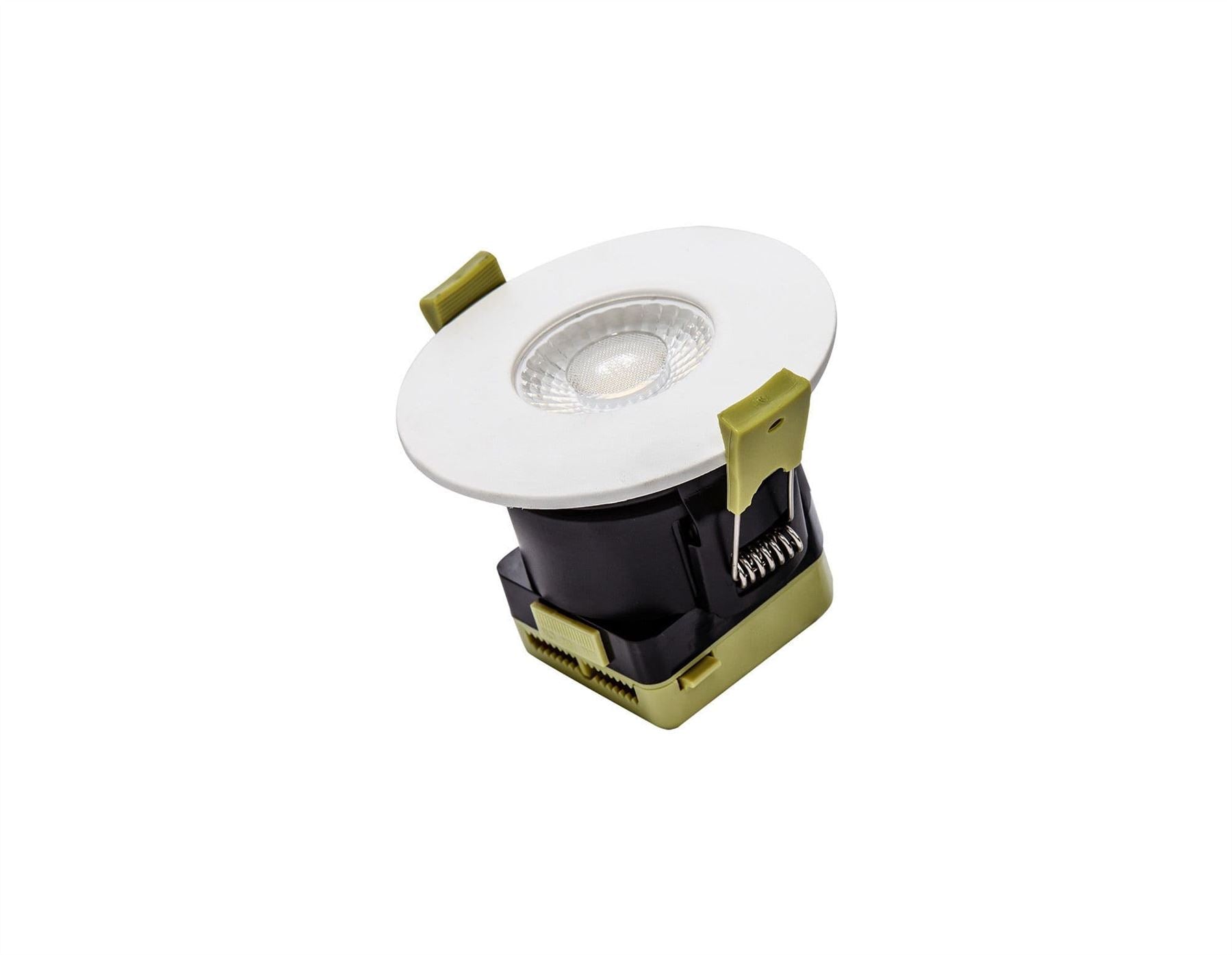

Trendi Switch Dimmable IP65 CCT LED Fire Rated Downlight in Ice White

8W, 90mA, Dimmable CCT LED Fire Rated Downlight, WITHOUT FASCIA, Cut Out: 70mm, 900lm, 60°
Deg, IP65 DRIVER INC., 5yrs Warranty (4LT108A)

DATA SHEET

MARKETING INFORMATION
Brief Description - 8W, 90mA, Dimmable, CCT LED Fire Rated Downlight,WITHOUT FASCIA, Cut Out:70mm, 60° Deg, IP65
Catalogue Description - Fire Rated LED Downlight

PHYSICAL CHARACTERISTICS
Colour Finish - Black
Colour Finish 2 - Green
Type of Finish - Powder Coated
Recessable - Yes

MECHANICAL SPECIFICATION
Item Nett Weight (kg) - 0.2kg

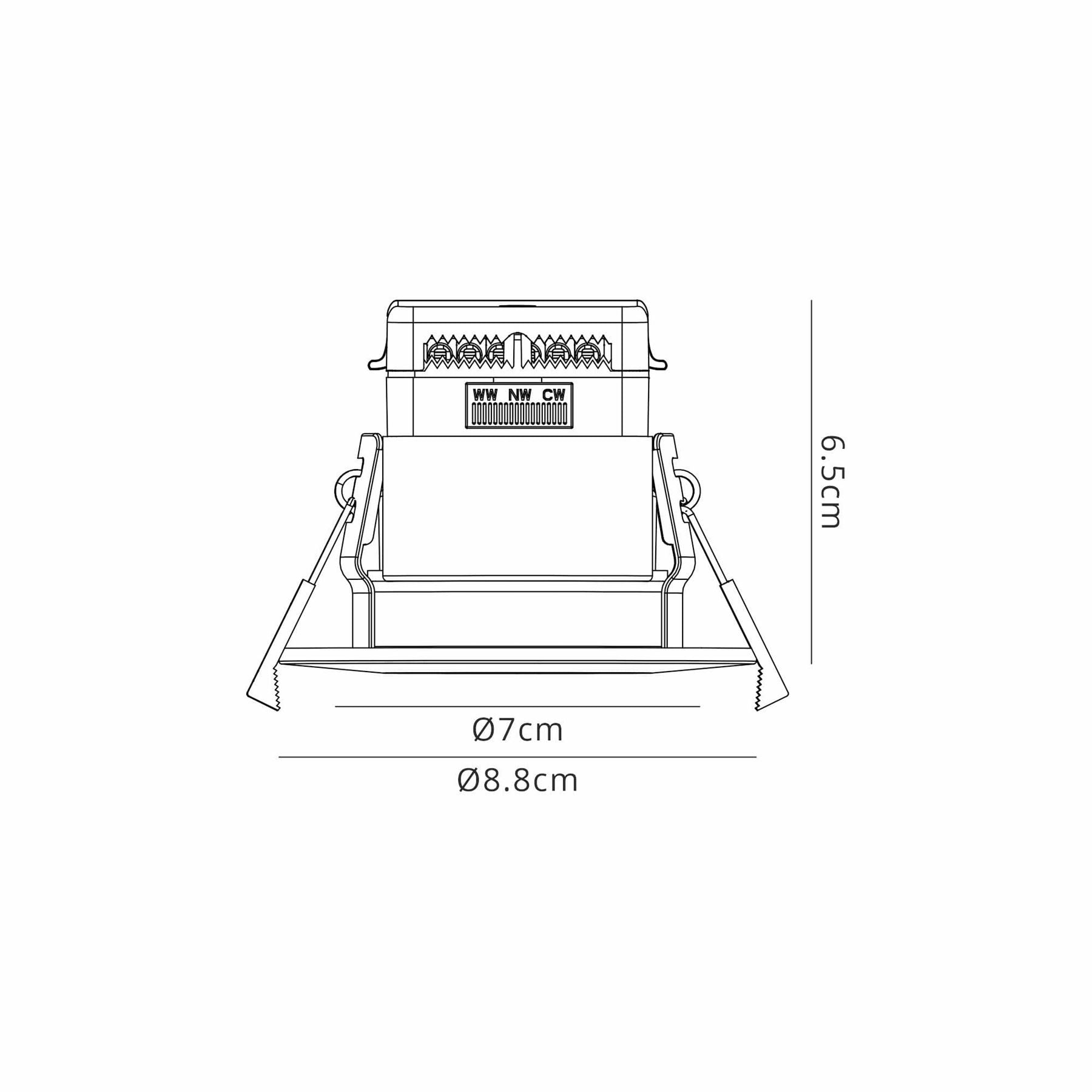

Diameter (mm) - 88mm
Height (mm) - 65mm
Horizontal Adjustment (°) - No
Vertical Adjustment (°) - No
Cut Out (mm) - 70mm
Materials Used - Aluminium + Plastic

ENERGY SPECIFICATION
Energy Class - A++ to A

LAMP SPECIFICATION
No: of Lamp - 1
Lamp Socket - Integral LED
Recommended Lamp - Integral LED
Max Wattage Lamp (W) - 8W
Lamp Included - Yes - Integrated
Type of Lamp Included - Integrated LED
Brand of Lamp - Hongli
Colour Temperature (K) -3000/4000/6000K Warm/Cool/Daylight White (±5%)

LED SPECIFICATION
Average Life of LED (hrs) - 50000hrs
LED Voltage (V) - 9.1V ( ±5%)
Type of LED - SMD

OPTICAL SPECIFICATION
Lumens Per LED - 125Im
Beam Angle (°) - 60°
System Flux (lm) - 900Im ( ±5%)
CRI - >80
UGR - <=24

DRIVER SPECIFICATION
Driver Included - Yes
Type of Driver Required - Integrated
Type of Driver - Constant Current
Power Factor (?) - >0.85? ( ±5%)
Constant Current Output (mA) - 90mA
Min/Max. Voltage Output (V) - 72-80V DC
Load Range (W) - 6.5-7.2W
Ta (°C) - 45°
Tc (°C) - 75°
Average Life Of Driver (hrs) - 30000hrs
Wattage Required (W) - 8W
Voltage Required (V) - 220-240V~50/60Hz
Current Required (mA) - 0.042A

ELECTRICAL & SAFETY SPECIFICATION
Protection Class - Class 1 - Earth Connection Required
Thermal Class - Insulation Coverable
Total Power Consumption (W) - 8W ( ±5%)
Input Voltage (V) - 220-240V~50/60Hz
Input Current (A) - 0.042A
Dimmable - Yes
Dimmer Included - No
IP Rating - IP65

QUALITY STANDARDS
Average Life (hrs) - 50000hrs
Warranty (yrs) - 5yrs
CE - Yes
Rohs - Yes
EMV/EMC - Yes
Additional Certification - Fire Rated

CARTON INFORMATION
Number of Cartons - 1
Carton CBM - 0.000712
Carton Gross Weight (kg) - 0.20kg ( ±5%)

UK Commodity Code - 9405119090
Country of Origin - China

OVERVIEW
This range of integral LED downlights with a wide variety of features available in 24
colour finishes. The CCT dimmable function can be set at 3000K, 4000K or 6000K. Each
downlight is both fire rated with an IP65 rating. They can also be covered by insulation
materials making them suitable for an extensive number of indoor and outdoor settings. Zafira

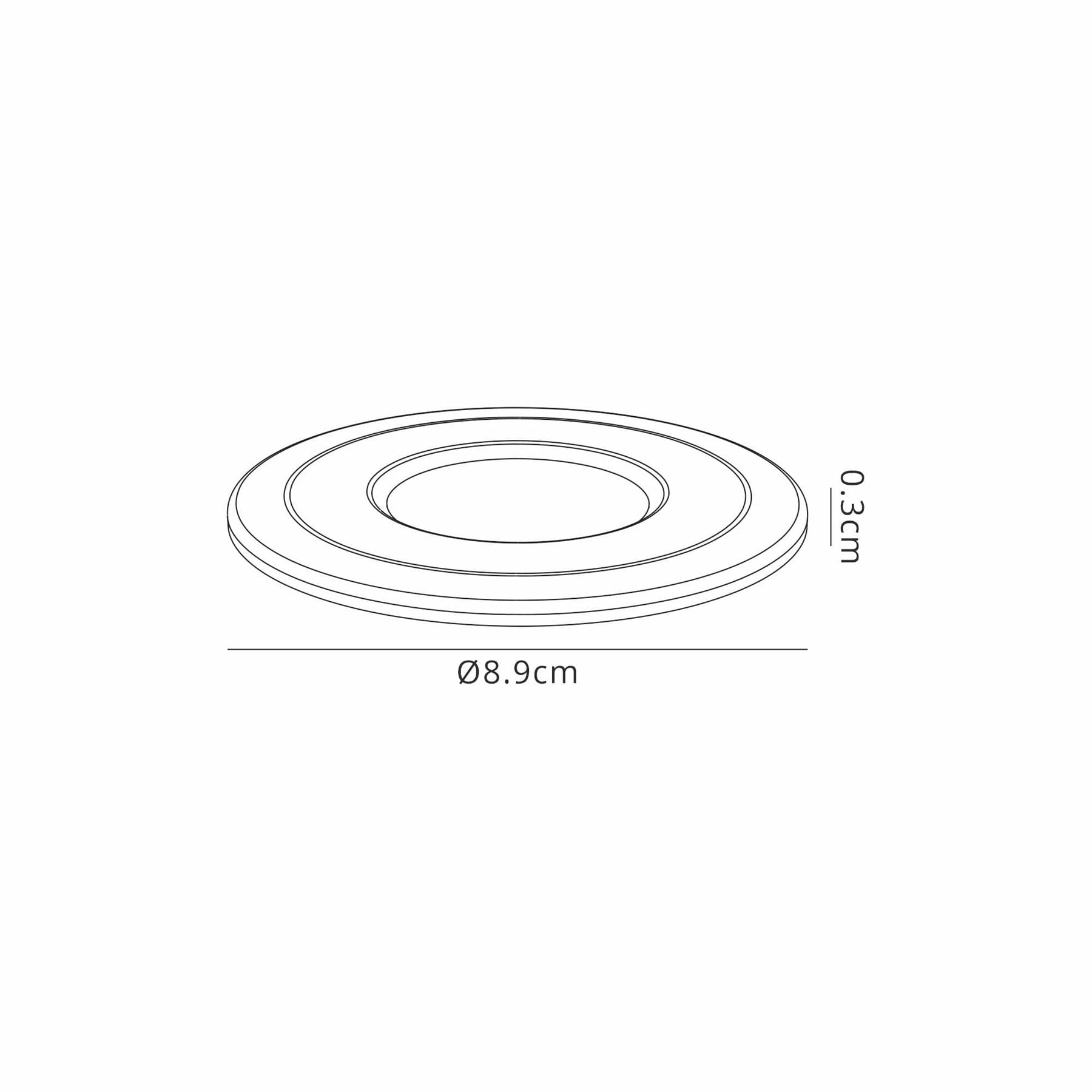

also offers fascias in an array of colours to further enhance your chosen downlight.
