Cat 5e vs Cat 6 vs Cat 6a: Which Ethernet Cable Should You Choose?

A reliable wired network can make a noticeable difference when streaming, gaming, working from home or connecting smart devices. Although Cat 5e, Cat 6 and Cat 6a Ethernet cables may look similar, they offer different levels of bandwidth, speed and protection against interference.

Choosing the right cable is only part of the job. Your wall sockets, patch leads, connectors and network equipment must also support the same category if you want the installation to achieve its intended performance.

Cat 5e, Cat 6 and Cat 6a compared

Cable category	Bandwidth	Typical network performance	Best suited to
Cat 5e	100MHz	Up to 1Gbps over 100 metres	Everyday home and small-office networks
Cat 6	250MHz	Up to 1Gbps over 100 metres; 10Gbps may be possible over shorter runs	New homes, home offices and growing businesses
Cat 6a	500MHz	Up to 10Gbps over 100 metres	High-performance and future-focused networks

These figures describe the capability of a correctly installed network channel. Your actual speed will still be limited by the slowest part of the network, including your broadband connection, router, switch, wall socket, patch cable and connected device.

Bandwidth measured in MHz should not be confused with internet speed measured in Mbps or Gbps. The higher frequency rating gives the cable more capacity to carry data while controlling interference.

What is Cat 5e?

Cat 5e stands for Category 5 Enhanced. It was developed to improve the performance of the original Cat 5 standard and remains widely used in homes and commercial buildings.

A correctly installed Cat 5e network can support Gigabit Ethernet at speeds of up to 1Gbps over a channel length of up to 100 metres. That is sufficient for most broadband packages, streaming services, smart televisions, printers and everyday office equipment.

Advantages of Cat 5e

• Usually the least expensive option.
• Supports Gigabit Ethernet over standard installation distances.
• Thinner and more flexible than higher-category cables.
• Easier to route through existing walls and compact spaces.
• Suitable for extending or repairing an existing Cat 5e network.

Drawbacks of Cat 5e

• Offers less protection against crosstalk and interference than Cat 6 or Cat 6a.
• Provides less capacity for future network upgrades.
• Is not designed to provide 10Gbps performance over normal structured-cabling distances.
• May need replacing if a property later requires a high-speed local network.

Cat 5e remains a practical choice when the network only needs to support everyday devices at speeds of up to 1Gbps.

What is Cat 6?

Cat 6 increases the operating frequency to 250MHz and provides better control of crosstalk between the cable pairs. The conductors are more tightly twisted, and many Cat 6 cables use an internal separator to keep the pairs apart.

Cat 6 supports 1Gbps over distances of up to 100 metres. It may also support 10Gbps over shorter, carefully installed runs, although the available distance depends on the installation and the amount of interference from neighbouring cables.

Advantages of Cat 6

• Provides more bandwidth than Cat 5e.
• Offers improved resistance to crosstalk.
• Supports Gigabit Ethernet comfortably over 100 metres.
• Can support 10Gbps on shorter qualifying links.
• Provides a useful balance between cost, installation difficulty and future capacity.

Drawbacks of Cat 6

• Usually costs more than Cat 5e.
• Can be thicker and less flexible.
• Correct termination is more important to maintain Cat 6 performance.
• Does not guarantee 10Gbps over a full 100-metre channel.

For many new domestic and small-business installations, Cat 6 is the sensible middle ground. It offers additional headroom without the cost and installation demands of Cat 6a.

What is Cat 6a?

Cat 6a means Category 6 Augmented. It doubles the bandwidth of Cat 6 to 500MHz and is designed to support 10 Gigabit Ethernet over a complete 100-metre channel.

It also has stricter requirements for controlling alien crosstalk, which is interference received from neighbouring network cables. Cat 6a is available in both shielded and unshielded constructions, so it should not automatically be assumed that every Cat 6a cable is shielded.

Advantages of Cat 6a

• Supports 10Gbps over distances of up to 100 metres.
• Provides substantially more bandwidth than Cat 5e or Cat 6.
• Offers better control of interference and alien crosstalk.
• Suitable for servers, network storage, high-capacity wireless access points and demanding business networks.
• Provides greater capacity for future equipment upgrades.

Drawbacks of Cat 6a

• Costs more than Cat 5e or Cat 6.
• Is normally thicker, heavier and less flexible.
• May require larger containment, more space behind outlets and careful attention to bend radius.
• Termination and testing can be more demanding.
• May be unnecessary for a basic home network that will not use 10Gbps equipment.

Cat 6a is most useful where 10Gbps performance is genuinely required, particularly over longer cable runs. Installing it will not automatically make a standard internet connection faster or reduce gaming latency if the rest of the network already limits performance.

Which Ethernet cable is best for a home?

For an existing home network that performs reliably at 1Gbps, there is often little reason to replace Cat 5e.

For a renovation, extension or new installation, Cat 6 is usually a strong choice. It provides more capacity than Cat 5e, gives better protection against crosstalk and is easier to install than Cat 6a.

Cat 6a may be worth considering when cables will be difficult to replace later, or when the network will serve high-speed storage, servers, advanced access points or other equipment requiring a full 10Gbps connection.

Choosing the correct RJ45 wall socket

The finished network is rated according to its lowest-performing component. Installing Cat 6 cable into a Cat 5e socket creates a connection limited to Cat 5e performance. The same principle applies if Cat 6a cable is terminated using a Cat 6 wall socket.

To achieve a certified category rating, the cable, RJ45 wall sockets, patch panel, connectors and patch leads should all meet the required specification.

Trendi Switch offers stylish RJ45 network sockets for Cat 5e and Cat 6 installations, bringing the data connection into the same coordinated design as your light switches and power sockets.

Available options include:

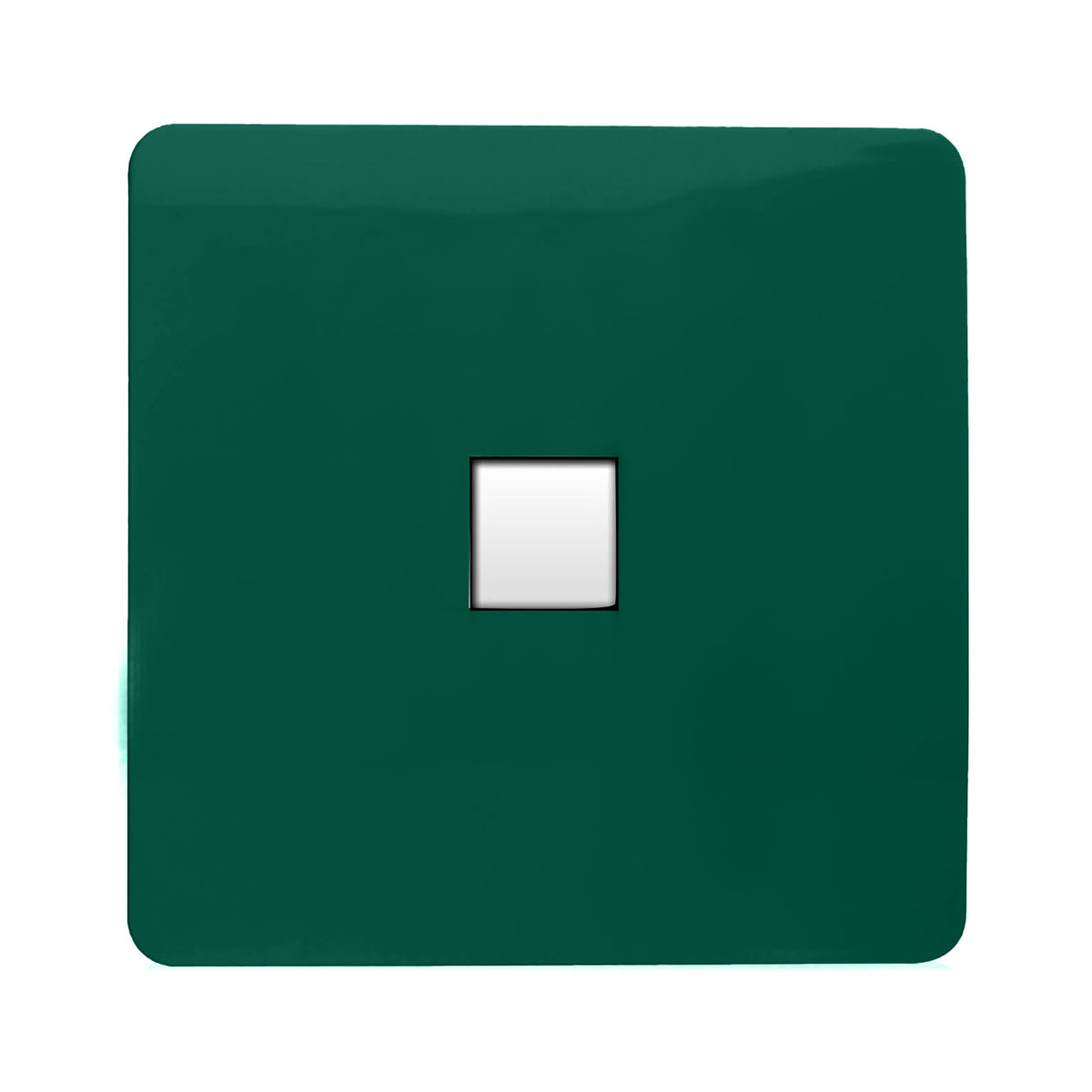

• 1 gang RJ45 Cat 5e Ethernet sockets.

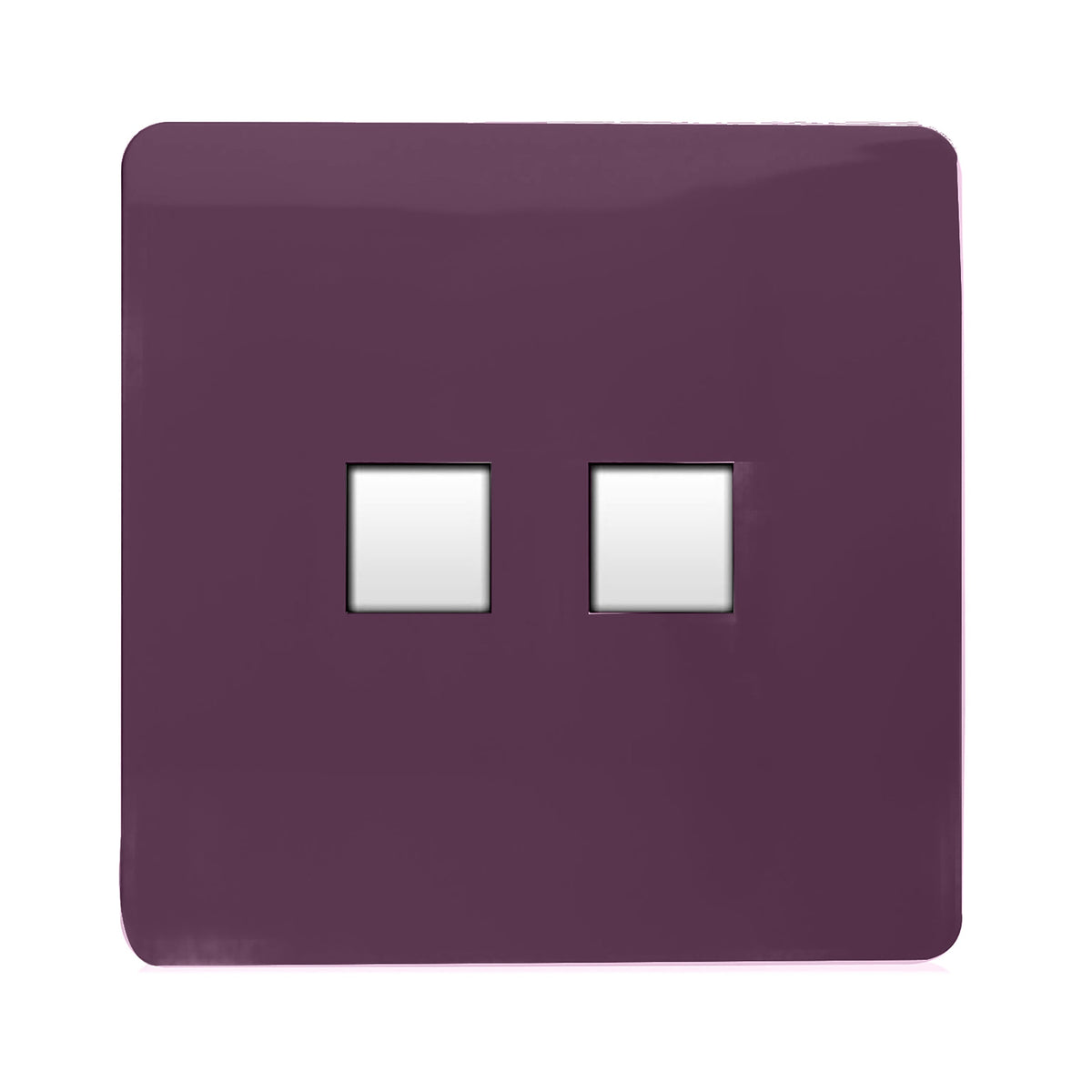

• 2 gang RJ45 Cat 5e Ethernet sockets.

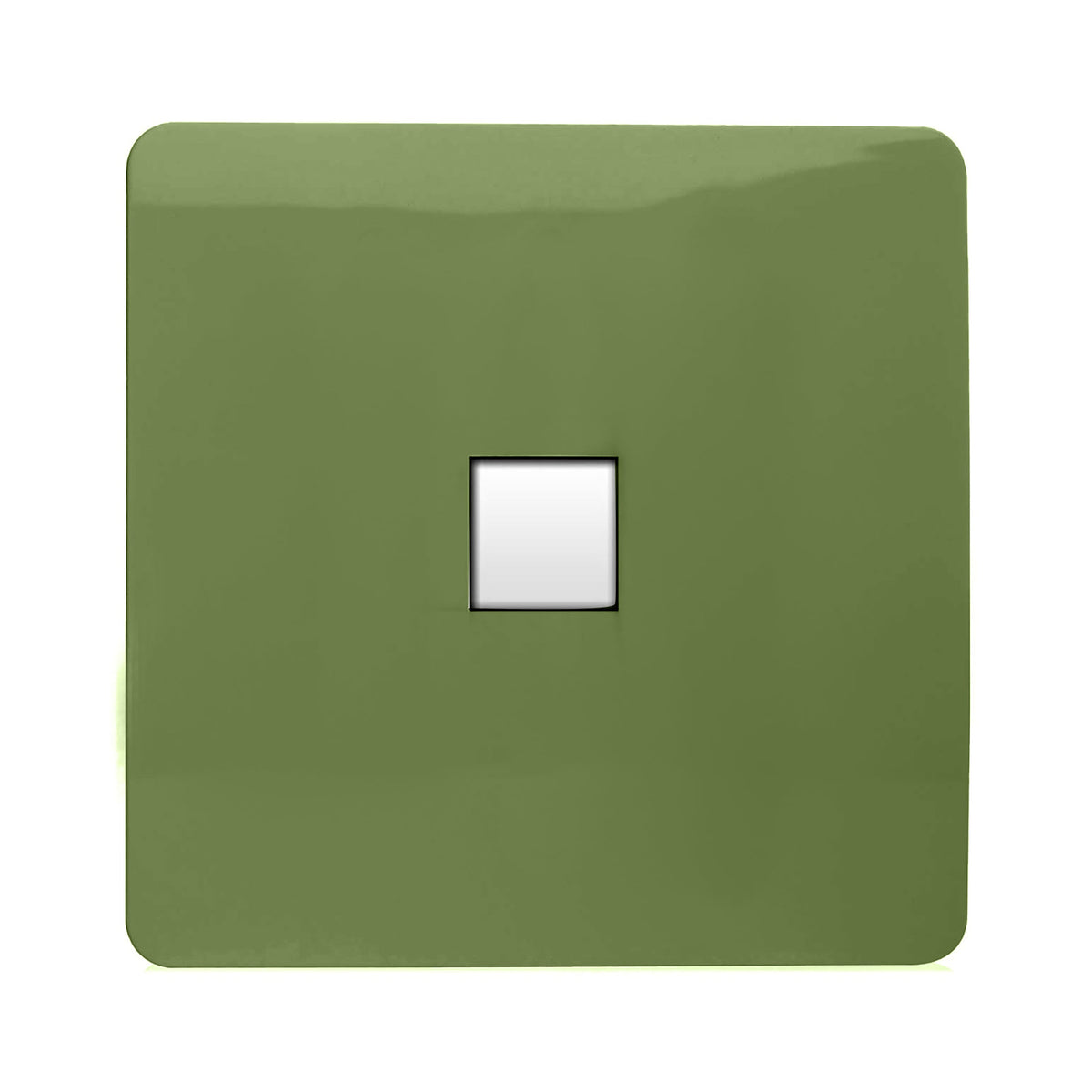

• 1 gang RJ45 Cat 6 Ethernet sockets.

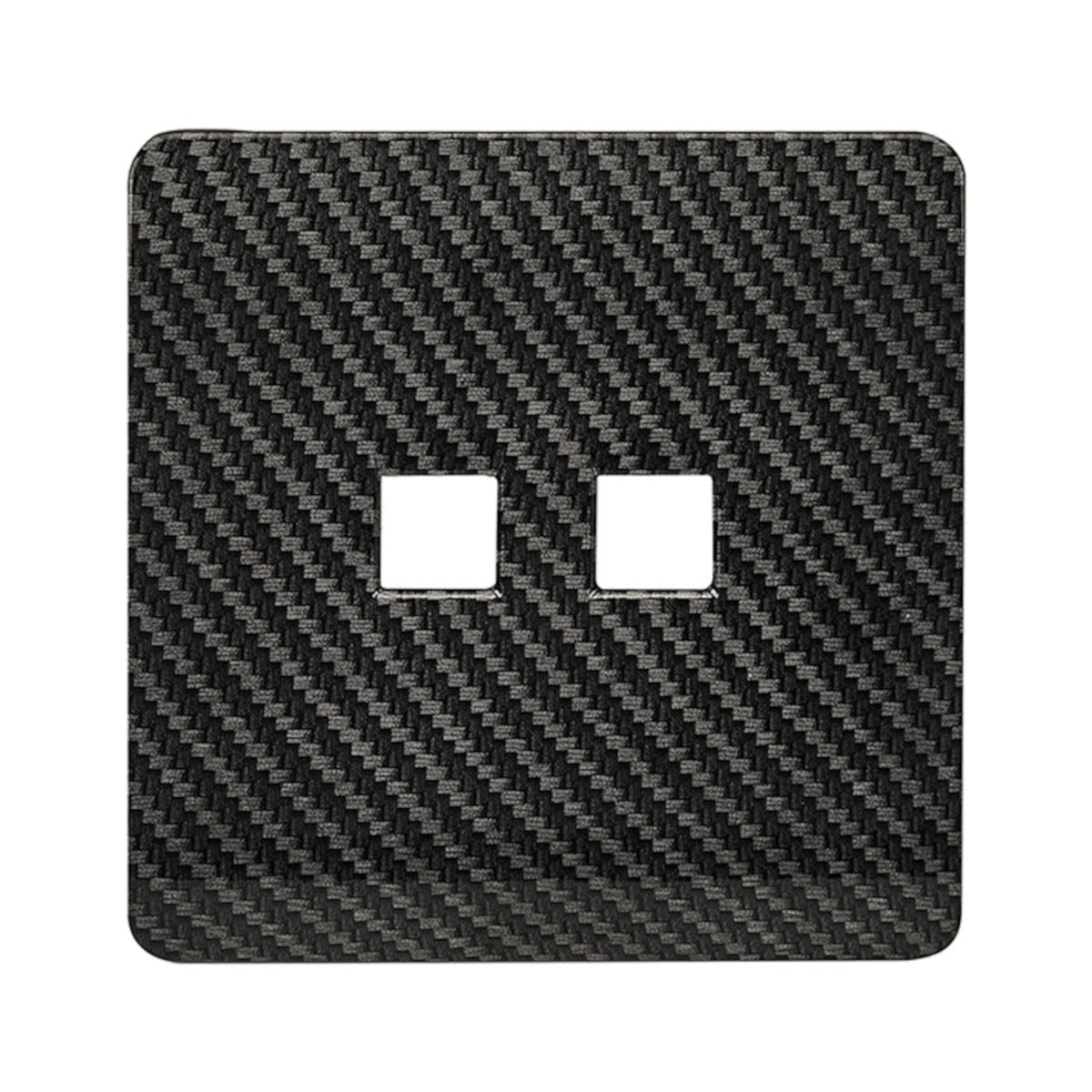

• 2 gang RJ45 Cat 6 Ethernet sockets.

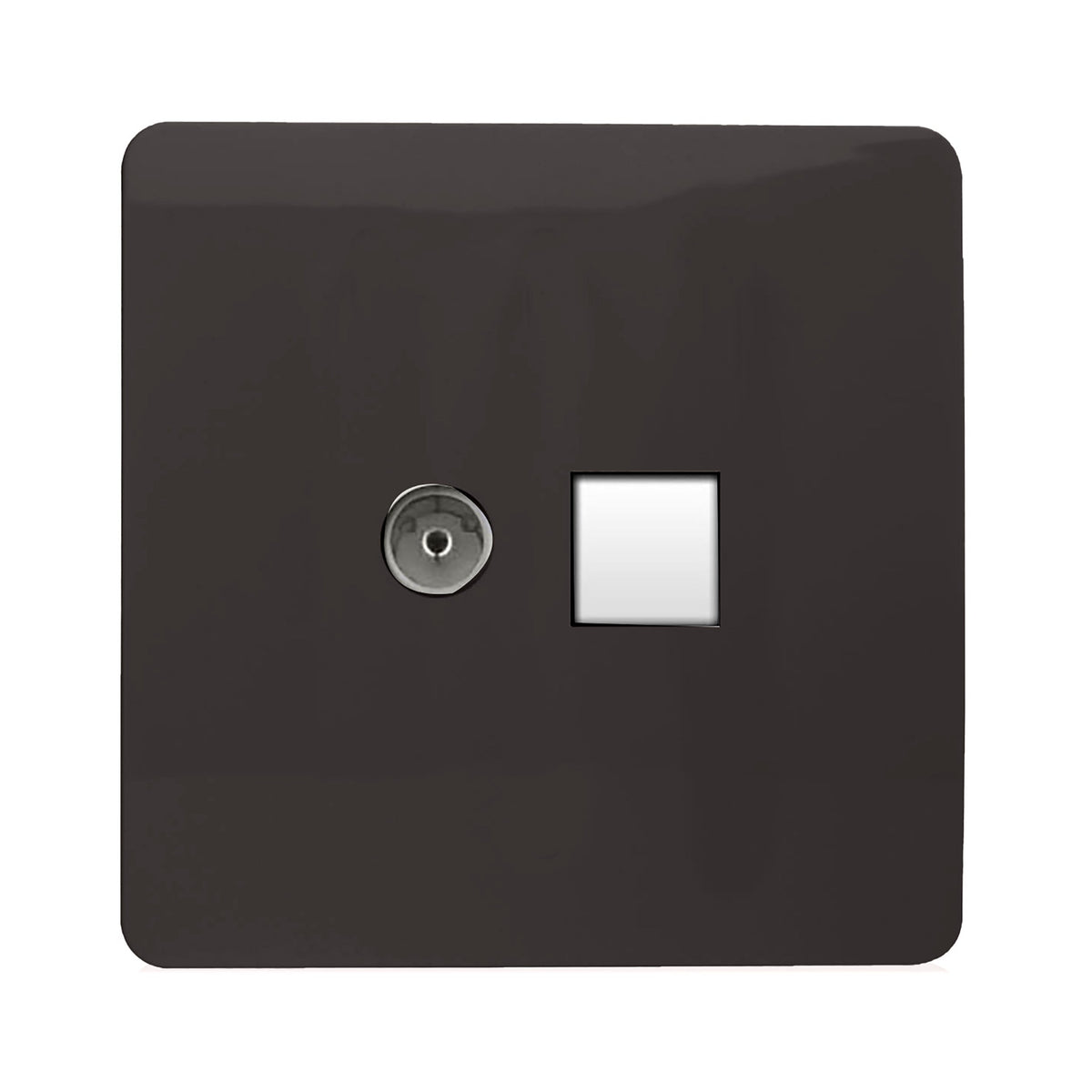

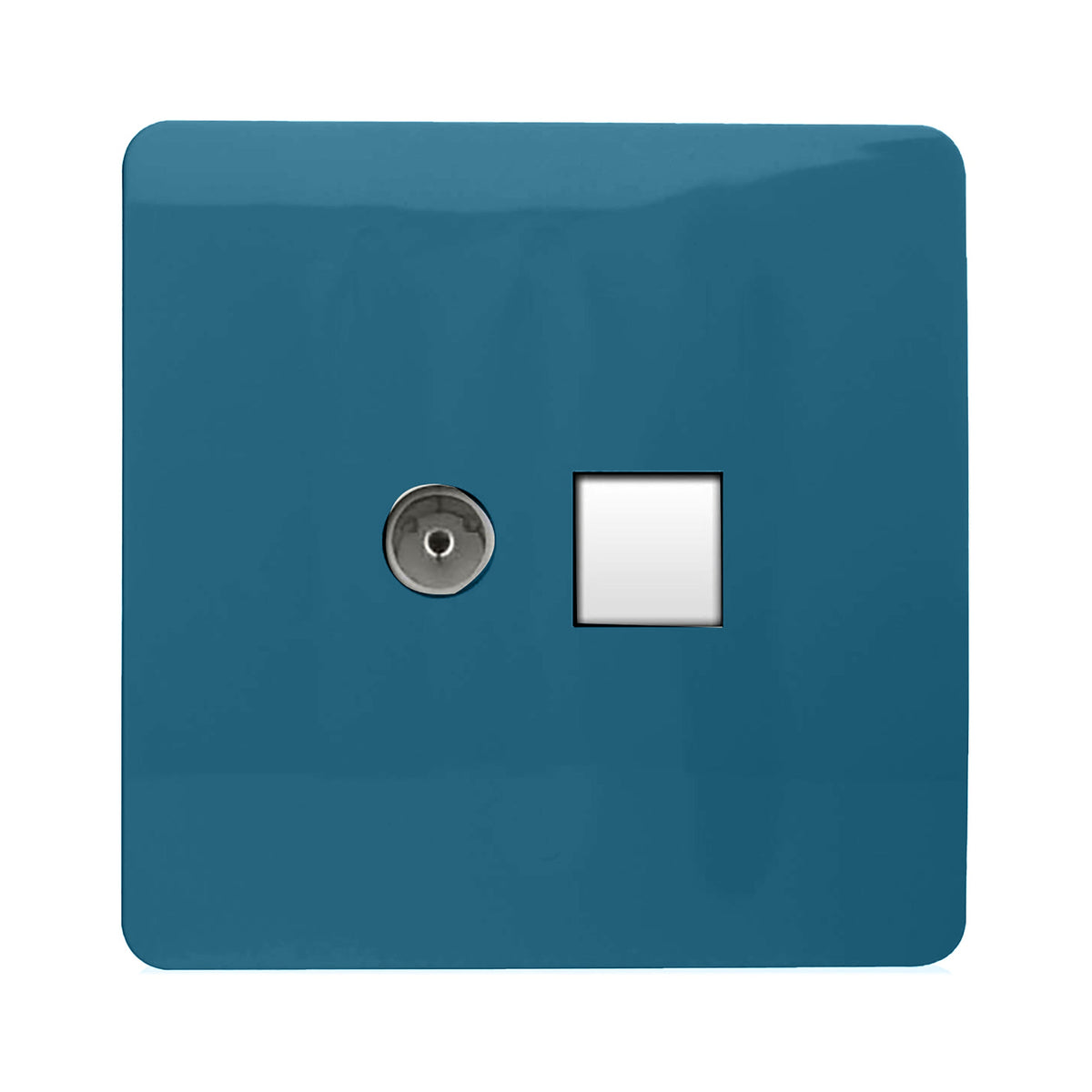

• Selected combination outlets incorporating Ethernet, television or telephone connections.

The screwless faceplates are available in a wide selection of finishes, allowing network outlets to coordinate with the surrounding electrical accessories rather than looking like a purely functional addition.

An important note about Cat 6a

Cat 6a uses the familiar RJ45-style connection and remains backward compatible with lower-speed Ethernet equipment. However, connecting Cat 6a cable through a Cat 6-rated socket will limit the completed channel to the rating of that socket.

If a project specifically requires certified Cat 6a performance and 10Gbps over 100 metres, every part of the installation must be Cat 6a rated. Check the rating of the socket mechanism before installation or contact the Trendi Switch team to confirm the latest suitable options.

Installation matters

Even the correct cable and socket can underperform if they are badly installed. Excessive untwisting at the terminals, tight bends, damaged cables and poor separation from sources of electrical interference can all affect network performance.

Fixed data cabling should be planned, terminated and tested by a competent installer. Testing the completed link is particularly important where Cat 6, Cat 6a or guaranteed network speeds are required.

Final thoughts

Cat 5e remains an affordable and dependable choice for standard Gigabit networks. Cat 6 offers more bandwidth and is often the best all-round option for new domestic and small-commercial installations. Cat 6a provides full 10Gbps performance over longer distances but comes with higher costs and more demanding installation requirements.

Whichever category you choose, make sure every part of the network matches. With the correct cable, equipment and RJ45 wall socket, you can create a wired connection that is fast, reliable and neatly integrated into the room.
